High-voltage plug connection for SM-HVDC devices

!Important Notice!

Please note that deliveries are only possible within Germany. For international orders, please contact your respective local partner to proceed with your purchase.

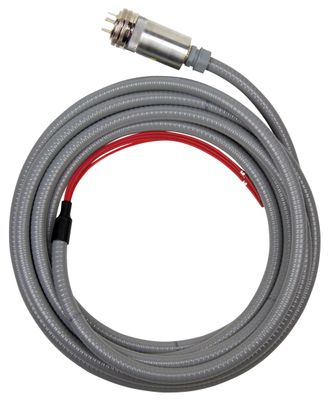

ELABO high-voltage plug connection

Description:
- HV connector 4-pin
for testing devices SM-HVDC-0/10/20
Max. operating voltages:
Operating voltage (DC): 10kV
Test voltage (DC): 15kV
Rated current: 13A
Connection cross section: max. 2.5mm².
Conductor size: max. Ø4.2mm

The application for higher voltages
is not permissible!

Scope of delivery:
- 1x high voltage connector
- 4x crimp contacts
- 1x metal cable gland M20
