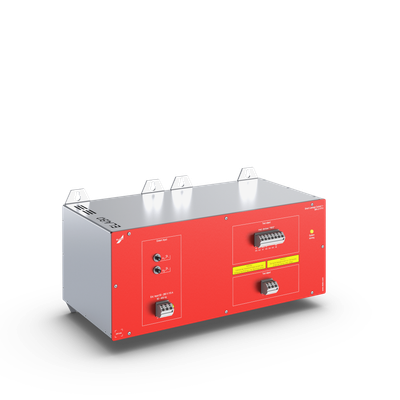

ELABO leakage current supply module for 1-phase test objects without earth potential reference

Name: ELABO leakage current supply module for 1-phase test objects without earth potential reference
Brand: ELABO
SKU: SM-LCPOW1P-11-ZRM
Availability: OutOfStock

Store / Measuring instruments / Standalone test units / Ableitstrom

0,00 EURO

Sold out

Price incl. VAT (19%) 0,00 EURO

Excl. shipping

Sold out

Product Details

Lieferzeit: 16-18 weeks

!Important Notice!

Please note that deliveries are only possible within Germany. For international orders, please contact your respective local partner to proceed with your purchase.

ELABO leakage current supply module for 1-phase test objects without earth potential reference

- Installation in switch cabinets

- Setting and regulation of the output voltage

output voltage only possible in conjunction with

a leakage current test module possible

- Mains frequency-synchronized, variable

output voltage via transformers, primary and

secondary

fused on the primary and secondary side

- Changing the output voltage via

electromechanical variable transformer

Connections on the underside:

- Mains connection (GST 18 built-in plug)

- Connections for 1-phase

leakage current test module for regulating the

operating/test voltage (plug connector

(3-pin) with interlock for power supply

and M12 plug (8-pin) for regulating the

electromechanical transformer)

T E C H N I C A L D A T A:

Power supply:

- Mains connection, 230V AC, 1-phase, max. 5A,

50/60Hz

Output to leakage current test module :

- Operating / test voltage: 2V ... 280V AC,

Mains frequency

- Operating current: max. 4A AC, 1-phase, rev.

fused

Mounting:

6 holes for screwing to a mounting plate

mounting plate

Dimensions:

426mm (84TE) x 220mm x 235mm (W/H/D)

Weight:

approx. 25kg

Subject to technical changes.
