ELABO-Housing 3 HU /four-part.

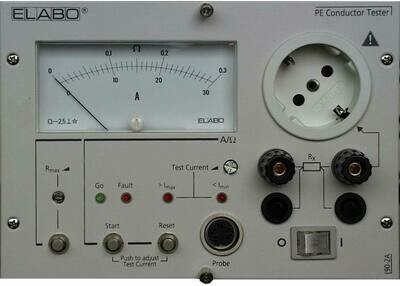

Colour grey with ventilation slots to accept a PE Conductor tester 90-2A.

For interface adjustment, one relay each for start and reset is installed in the housing.
For a short-term function test of the PE device, a measuring shunt of 0.3 Ohm/50W is connected to the input via a 24 VDC signal from the PLC.
Including complete wiring on terminal blocks.
Connection via 4 PG glands on the underside of the terminal box.

W = 355, D = 330, H = 225
